🏛️ Architecture Portfolio AI
Partial 2D ArchiCAD drawings turned into a dimensionally accurate 3D model, verified photoreal renders, a print portfolio and an interactive Three.js experience — delivered in a 19-hour sprint by an agentic pipeline with independent multi-agent verification.
External Links
Achievements
Passed Independent Verification
Final exterior and interior sets cleared the verification panel at 9.2/10 against frozen fidelity criteria.
19-Hour End-to-End Delivery
Partial 2D drawings to model, renders, print portfolio and live site in one overnight sprint.
𝗦𝗶𝘁𝘂𝗮𝘁𝗶𝗼𝗻
An architect (FAUP, Porto) preparing an internship portfolio wanted 3D visualizations of her housing project, Habitação Plurifamiliar no Viso. She had partial 2D drawings: one street elevation, plans, two sections and a materials board. No model, no full set of facades.
Nothing off the shelf fits. Floor-plan-to-3D tools do single-floor interiors, and image-to-3D models fall apart on orthographic drawings.
𝗧𝗮𝘀𝗸
Rebuild the building faithfully from her drawings — her design is the source of truth — and deliver portfolio-grade output over a weekend: renders, massing views, a 3D model and a print portfolio.
𝗔𝗰𝘁𝗶𝗼𝗻
Measured the geometry straight from the vector PDFs and built the massing model in headless Blender. Floor heights and bay rhythm come from the section and elevation, not from guesses.
Conditioned image models on the clay render, the elevation and the materials board, and split the work by model strength: one for eye-level shots, one for whole-building geometry.
One agent cannot hold design fidelity on its own, so every render went through a tribunal: an independent panel of agents, including an adversary, scoring it against frozen acceptance criteria — massing, facade module, residential typology, continuity across shots, archviz quality.
Used a multimodal LLM loop to check each render against the drawings and fix what failed with targeted edits — current render as the only reference, one surgical instruction — instead of regenerating the whole run.
Same loop for the interiors, the print portfolio and the Three.js site.
𝗥𝗲𝘀𝘂𝗹𝘁

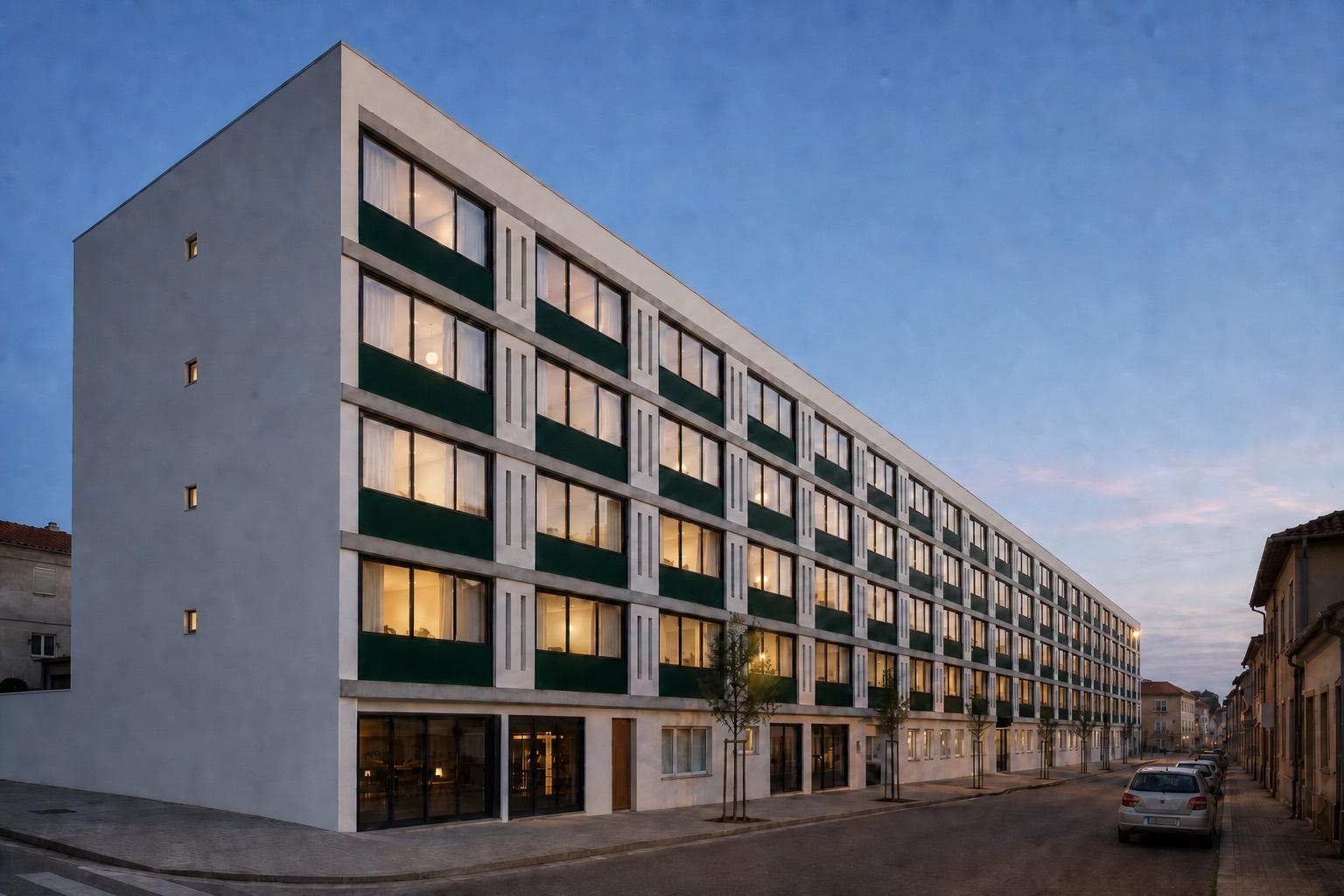

Six verified photoreal views, four massing views, a Blender/GLB model, a print portfolio and a live interactive site. Nineteen hours from first commit to launch, with the AI assistance disclosed in the deliverable.
